CENTRIFEEDER ICV: FILLING

Centrifeeder family of feed devices
The CentriFeeder line of feeders provides accurate, real-time flow measurement, as well as near perfect control of flow rate and total. For blending applications, control the flow rate of an individual ingredient, or combine several CentriFeeders for near perfect recipe control. If you are controlling ingredients entering a batching process, use the CentriFeeder for controlling the total of one or more ingredients entered into the batch. Please see below for additional information regarding the use of the CentriFeeder ICV as a filling station for filling bags, boxes, bulk bags or Gaylord containers. The CentriFeeder with ICV, when used for filling, is called the CentriFill. The CentriFill can be used as a manual filling station or as an automatic filler that fills passing containers.


CENTRIFEEDER ICV: FILLING

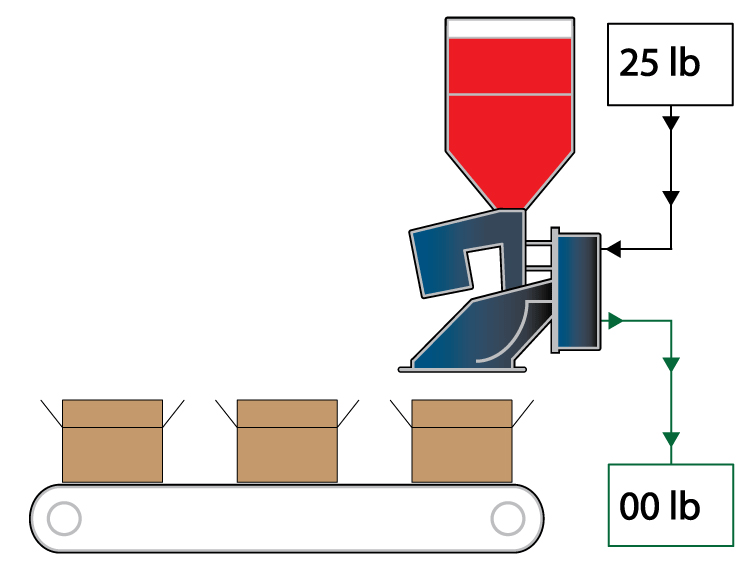

CentriFeeder ICV for filling boxes, bags, containers or bulk bags via an integrated slide gate


CENTRIFEEDER ICV: FILLING

The CentriFeeder ICV can be used for filling as well as flow control. The CentriFill, as the CentriFeeder is known when configured in filling mode, contains a special build of software and special screens that graphically display the filling features of the CentriFeeder ICV. The CentriFill can also be equipped with a range of options including a foot pedal for manual filling initiation.


CENTRIFILL 1000:



MANUAL FILLING STATION




CentriFill 1000 for manual filling of various containers



The CentriFill 1000 is a high speed weigh filler which measures a predetermined mass of product as it fills any small container over 25 lb (11.5 kg) in size. The unique filling capacity of the CentriFill 1000 allows extremely fast fills without the slow dribble-feed often plaguing many fillers. Building on the precision of the CentriFlow and speed of the CentriFeeder Meter's fraction of a second start/stop capabilities, the CentriFill 1000, available in 6", 12" and 24" models, offers revolutionary capabilities for quickly and accurately filling virtually any container with flowable, granular solids in a variety of industries.

Featuring customizable touch-screen HMI electronics and optional foot pedal activated batch start capabilities, the CentriFill 1000 offers exceptional customization, unlimited ease of use and extremely fast and accurate fills for any granular product, including nuts, beans, wood pellets, plastics, chemical granules, candies, cereals, animal feed and more.


CENTRIFILL 2000:



SEMI-AUTOMATIC FILLER




CentriFill 1000 for manual filling of various containers



The CentriFill 2000 is similar to the CentriFill 1000 in its function, however it can be used as a semi-automatic weigh filler which automatically measures a predetermined amount of product as it fills boxes or containers 25 lbs or larger in size. The CentriFill 2000's fill cycles are automatically initiated using a variety of methods, including motion sensor activated conveyor systems or Diverter systems that change orientation based on the throughput through the CentriFill device. The fills can even be initiated from a PLC or another controller.


RAILCAR AND TRUCK

Learn More About Railcar Filling

FILLING STATION




Railcar and Truck filling and loadout



Accurately fill both railcars and trucks with nearly any product from granular pellets and grains to powders. The Railcar and Truck Loadout System enables you to program multiple compartment fills or to customize each fill as required.

BATCHING AND FILLING CAPACITY OF THE
CENTRIFEEDER ICV: GRANULAR PRODUCTS

FEEDER
SIZE
MIN
BATCH SIZE
MIN
TARGET TIME
MIN
VOLUMETRIC
FLOW RATE
MAX
VOLUMETRIC
FLOW RATE
TYPICAL
ACCURACY*
ICV-06
7.00 lb
3.18 kg
5 s
1.01 ft3/min
0.03 m3/min
16.88 ft3/min
0.48 m3/min
+/-0.25%
ICV-12
17.00 lb
7.71 kg
5 s
2.25 ft3/min
0.06 m3/min
37.50 ft3/min
1.06 m3/min
+/-0.25%
ICV-24
34.00 lb
15.42 kg
5 s
4.50 ft3/min
0.13 m3/min
75.00 ft3/min
2.12 m3/min
+/-0.25%
* Typical Accuracy based on Min to Max flow over the range of the feeder for a mapped product
